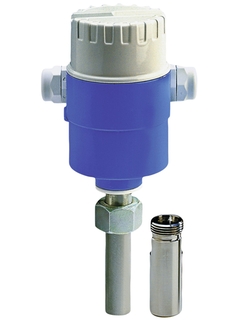

Product picture of: Magphant - Electromagnetic flowmeter

Magphant
electromagnetic flowmeter

The cost-effective limit switch for reliable and repeatable flow monitoring

DTI200
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Product picture of: Magphant - Electromagnetic flowmeter ©Endress+Hauser

Specs at a glance

  • Max. measurement error

    2%

  • Measuring range

    0 to 56'550 m3/h

  • Medium temperature range

    -20 to +120°C
    (-4 to +248°F)

  • Max. process pressure

    0 to 16 bar abs

  • Wetted materials

    1.4435/316L

Field of application

The cost-effective, compact limit switch Magphant is an ideal flowmeter for water applications in Utilities. Its reliable measurement with high repeatability allows for univesal and easy use and supports safe process- and plant operation.

  • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity

  • Universally usable for all water applications in Utilities.

Device properties

  • Compact, space-saving design

  • Nominal diameter: DN 15 to 2000 (1/2 to 80")

  • Applicable for steel or plastic pipes

  • Switch point setting via rotary switch

  • Current output and relay output

  • ATEX, FM, CSA

Benefits

  • High plant availability – reliable flow information

  • Energy-saving flow measurement – no pressure loss due to cross-section constriction

  • Maintenance-free – no moving parts

  • Process safety – device self-monitoring and reliable monitoring even with empty piping

  • Product safety – integrated testing to check correct functioning of the electronics

  • Easy operation – potentiometer setting of full-scale value

Videos

  • The Electromagnetic Flow Measuring Principle

Predecessor

Success stories

  • Picture of the water reservoir Marbach (Germany) Picture of the water reservoir Marbach (Germany)

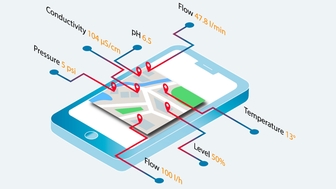

    Smart monitoring system for potable water treatment

    With Netilion Network Insights, Oberzent's water masters now see all relevant data points of their water system on a cloud-based dashboard without having to drive to the plants.

  • Wastewater sampling in a shaft Wastewater sampling in a shaft

    Wastewater measurement that works

    Check out how Hofbrauhaus Freising samples wastewater with Promag L 400 in a nearly inaccessible shaft.

  • Picture of Promag W measuring tube with build-up Picture of Promag W measuring tube with build-up

    Build-up monitoring

    A water treatment plant in Germany faced the problem of unexpected downtime due to clogged water wells. With Heartbeat Technology build-up index the customer now monitors iron build-up in his process.
