Specs at a glance
-
Accuracy
+/- 1 mm
-
Process temperature
-40°C...200°C
(-40°F...392°F) -
Process pressure / max. overpressure limit
Horn: Vacuum...16 bar (232 psi)
Parabolic: Vacuum...6 bar (87 psi)
Use of UNIflange: Vacuum...1 bar (14.5 psi) -
Main wetted parts
316L
Field of application
Micropilot FMR540 is used for custody transfer and inventory control applications with NMi- and PTB-approvals and meets the requirements according to OIML R85 and API 3.1B. FMR540 with parabolic antenna is particularly suited for free space applications up to 40m and with horn antenna for free space applications that disallow the use of a parabolic antenna due to tank/nozzle geometry. Cost-effective and simple installation via 4-wire cable with HART and 24 V DC intrinsically safe power supply.

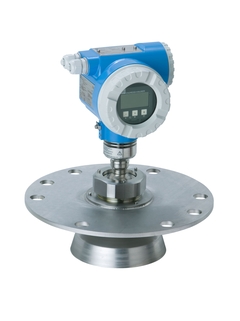

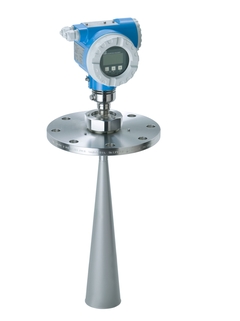

Parabolic antenna suited for free space applications up to 40m offers high beam focusing for applications with nozzle situated close to tank wall, 4"/DN100 horn antenna suited for free space applications.
Process connection: Flange
Temperature: -40 to +200°C (-40 to +392°F)
Pressure: Vacuum to +16bar (Vacuum to +232psi)
Maximum measuring range: 40m (131ft)
Accuracy: Better than ±1mm
K-band: 26GHz
International explosion protection and custody transfer certificates, overfill prevention WHG, SIL
Benefits
Better than 1mm accuracy
National approvals (NMi, PTB) for custody transfer
Applicable as stand-alone system or integrated into tank gauging systems via the Tank Side Monitor NRF590
Cost-effective and simple installation via 4-wire cable with HART and 24 V DC intrinsically safe power supply
Alignment device to compensate any flange inclination
Easy on-site operation via menu-driven alphanumeric display
Easy commissioning, documentation and diagnostics via operating software (FieldCare)
Videos
Xpert selection
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Loading alternative products
Predecessor
Success stories
Most downloaded
-
-
Operating Instruction (BA)
Micropilot S FMR540 HART Operating Instructions
English version - 08/2014
Level-Radar Continuous level transmitter for continuous and non-contact precision level measurement. For custody transfer andinventory control applications with NMi and PTB approvals.
EN 13/08/201407/02/201430/11/201021/10/200915/02/2008Language:
English
Version:
13/08/2014
File size:
3.7 MB
File name:
BA00326FEN_1514.pdf
-
-
-
Competence Brochure (CP)
Selection Guide Continuous level measurement in liquids and bulk solids
English version - 10/2022
Selection and engineering guide for the process industry
Language:
English
Version:
18/10/2022
File size:
18.3 MB
File name:
CP00023F00EN1922.pdf
-
80 documents
-
-
Technical Information (TI)
Tankvision NXA820, NXA821, NXA822
Inventory Management System with completely integrated software for
operation via standard web browserEN 03/04/2008Language:
English
Version:
03/04/2008
File size:
2.7 MB
File name:
TI419FEN_05.08.pdf
-
-
-
Technical Information (TI)
Micropilot S FMR540 Technical Information
Level-Radar
Continuous level transmitter for continuous and non-contact precision
level measurement. For custody transfer andinventory control
applications with NMi and PTB approvals.EN 09/12/201610/05/201613/08/201407/02/201430/11/2010Language:
English
Version:
09/12/2016
File size:
1.3 MB
File name:
TI00412FEN_1716.pdf
-
-
-
Operating Instruction (BA)
Micropilot S FMR540 HART Operating Instructions
Level-Radar
Continuous level transmitter for continuous and non-contact precision
level measurement. For custody transfer andinventory control
applications with NMi and PTB approvals.EN 13/08/201407/02/201430/11/201021/10/200915/02/2008Language:
English
Version:
13/08/2014
File size:
3.7 MB
File name:
BA00326FEN_1514.pdf
-
-
-
Operating Instruction (BA)
Micropilot S FMR540 HART
Smart Transmitter für kontinuierliche und berührungslose
Präzisions-Füllstandmessung. Eichfähig mit NMi- und
PTB-Zulassung.EN 13/08/201407/02/201421/10/200901/04/200911/12/2006Language:
English
Version:
13/08/2014
File size:
3.3 MB
File name:
BA00341FEN_1414.pdf
-
-
-
Short Instruction (KA)
Micropilot S - sealing set
Micropilot S - sealing set
EN 15/04/2021Language:
English
Version:
15/04/2021
File size:
19.1 KB
File name:
KA00558F00_A2.pdf
-
-
-
Short Instruction (KA)
Micropilot S - exchange of housing T12
Micropilot S - exchange of housingT12
EN 15/04/2021Language:
English
Version:
15/04/2021
File size:
567.9 KB
File name:
KA00559F00_A2.pdf
-
-
-
Short Instruction (KA)
Exchange of terminal module on Micropilot S FMR540
Exchange of terminal module on Micropilot S FMR540
EN 20/05/2021Language:
English
Version:
20/05/2021
File size:
256 KB
File name:
KA00668FA2_0407.pdf
-
-
-
Short Instruction (KA)
Micropilot S FMR540 HART Brief Operating Instructions
Level-Radar
Continuous level transmitter for continuous and non-contact precision
level measurement. For custody transfer andinventory control
applications with NMi- and PTB-approvals.EN 13/08/201407/02/201430/11/2009Language:
English
Version:
13/08/2014
File size:
1.8 MB
File name:
KA01059FEN_1414.pdf
-
-
-
Short Instruction (KA)
Exchange of electronics on Micropilot S FMR540
Exchange of electronics onMicropilot S FMR540
EN 24/04/2012Language:
English
Version:
24/04/2012
File size:
533.4 KB
File name:
KA00669FA2_0407.pdf
-
-
-
Short Instruction (KA)
Micropilot S FMR540
Micropilot S FMR540
EN 21/10/200914/02/200828/11/200622/09/2006Language:
English
Version:
21/10/2009
File size:
621.2 KB
File name:
KA274FEN_1009.pdf
-
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Cover F12/T12 Alu, window, gasket
-
Cover
Drawing numberOrder code2052005936 -
-
Cover T3/T12 Alu, coated, gasket
-
Cover
Drawing numberOrder code25518710-0020 -
-
O-ring 113.9x3.63 EPDM, 5 pieces
-
further parts
Order code71092209 -
-
Terminal module 5-pole, Ex i, FMR53x/540
-
Terminal module
Drawing numberOrder code3571020581 -
-
Terminal module 5-pole, Ex d, FMR540
-
Terminal module
Drawing numberOrder code3571020582 -
-
Display VU331, version 2
-
Display
Drawing numberOrder code4052026443 -
-
Electronics FMR540, Ex, HART, HF-module
-
Electronic
Drawing numberOrder code30FMR54X1- -
-
Parabolic reflector 197x25, 316L
-
Antenna module
Drawing numberOrder code5552025233 -
-
Horn FMR250/540,100mm/4",length 430mm,SS
-
Antenna module
Drawing numberOrder code5571020169 -
-
Parabolic reflector 173x60, 316L
-
Antenna module
Drawing numberOrder code5571090287 -
-
Parabolic reflector 236x88, 316L
-
Antenna module
Drawing numberOrder code5571090289 -
-
Adapter cable FMR2xx/53x, FMU4x, FMP4x
-
further parts
Order code52007441 -
-
Tool for unplugging the antenna cable
-
further parts
Order code52007646 -
-
ToF Adapter FXA291
-
further parts
Order code71007843 -
-
HF-test cable 6GHz
-
further parts
Order code71006590 -
-
HF-test cable 6GHz + resistor
-
further parts
Order code52028063 -
-
HF-test cable 26GHz
-
further parts
Order code52009925 -
-
Sealing kit FMR5xx
-
Sealing
Drawing numberOrder code6552005628 -
