Specs at a glance
-
Process temperature
Any
-
Process pressure / max. overpressure limit
Any
-
Main wetted parts
Non-contact
Field of application

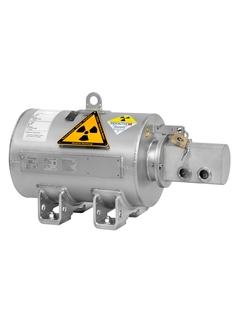

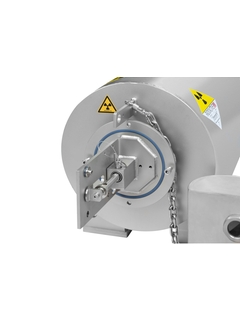

The FQG66 source container is designed to hold the radioactive source with highest activities during radiometric point level detection, continuous level and density measurement. The radiation is emitted almost unattenuated in one direction only, and is damped in all other directions. This guarantees highest safety for the personnel and a reliable measurement.
Encloses the radioactive source used for radiometric point level detection, level and density measurement. Operating with very high sensitivity rod scintillation detectors, provide lowest possible radiation loads in the surrounding.
Used if the shielding effectiveness of smaller source containers (FQG61/62) are too low
Activity: 137Cs 740GBq (20,000mCi), 60Co to 185GBq (5,000mCi)
Process temperature: No limitation (extraneous)
Process pressure: No limitation (extraneous)
Benefits
High safety level thanks to highest safety classification for the source supplied
(DIN 25426/ISO 2919, typically classification C66646) and simple and easy source replacementExtremely high shielding ensures that no control areas are generally required and that installation in accessed areas is possible
Additional metallic protective capsule with O-ring seal to protect the source against mechanical and chemical influences
Low space requirement and simple mounting and various angles of emission for optimum adaption to the application
Padlock for fixation the on/off switch position and to protect against theft

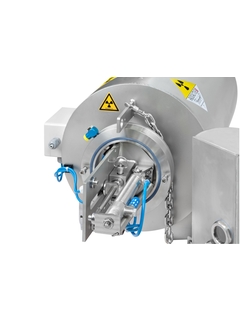

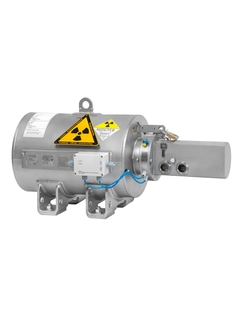

Easy identification of switch status through sight glasses on the cover or by remote display with proximity switches
Videos
Xpert selection
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Loading alternative products
Predecessor
Success stories
29 documents
-
-
Technical Information (TI)
Source container FQG66
Radiometric level measurement
EN 19/06/202028/02/201925/09/2015Language:
English
Version:
19/06/2020
File size:
2.4 MB
File name:
TI01171FEN_0320.pdf
-
-
-
Operating Instruction (BA)
Source container FQG66
Radiometric level measurement
EN 19/06/202025/09/2015Language:
English
Version:
19/06/2020
File size:
3.3 MB
File name:
BA01327FEN_0220.pdf
-
-
-
Installation Instructions (EA)
Terminal box
Source container FQG61, FQG62, FQG66
EN 12/11/202102/10/201931/07/201826/11/2015Language:
English
Version:
12/11/2021
File size:
680.4 KB
File name:
EA01142FA2_0421.pdf
-
-
-
Installation Instructions (EA)
Ball locking bolt Installation instruction
Source container FQG66
EN 02/09/2016Language:
English
Version:
02/09/2016
File size:
625.6 KB
File name:
EA01182FA2_0116.pdf
-
-
-
Installation Instructions (EA)
Sight glass and vent screw Installation Instruction
Source container FQG66
EN 26/11/2015Language:
English
Version:
26/11/2015
File size:
361.8 KB
File name:
EA01141FA2_0115.pdf
-
-
-
Installation Instructions (EA)
Proximity switch Installation Instruction
Source container FQG61, FQG62,FQG66
EN 26/11/2015Language:
English
Version:
26/11/2015
File size:
1.6 MB
File name:
EA01139FA2_0115.pdf
-
-
-
Installation Instructions (EA)
Source holder and gasket set Installation Instruction
Source container FQG66
EN 26/11/2015Language:
English
Version:
26/11/2015
File size:
435.7 KB
File name:
EA01138FA2_0115.pdf
-
-
-
Installation Instructions (EA)
O-ring cap Installation Instruction
Source container FQG66
EN 26/11/2015Language:
English
Version:
26/11/2015
File size:
508.6 KB
File name:
EA01137FA2_0115.pdf
-
-
-
Installation Instructions (EA)
Slide bearing set Installation Instruction
Source container FQG66
EN 26/11/2015Language:
English
Version:
26/11/2015
File size:
815.1 KB
File name:
EA01140FA2_0115.pdf
-
-
-
ZE (Certificate)
RFID TAG Certificate/Declaration of Conformity
ATEX:
II 2 G Ex ia IIC T6 Gb
II 2 D Ex ia IIIC T80°C Db;
IECEx:
Ex ia IIC T6 Gb
Ex ia IIIC T80°C Db
IECEx EPS 15.0042X; EPS 15 ATEX 1 1011 XEN 08/02/201920/06/201607/09/201520/08/2015Language:
English
Version:
08/02/2019
File size:
6.1 MB
File name:
ZE01020FA2_0418.pdf
-
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
O-ring cap FQG66, FVMQ
-
Sealing
Drawing numberOrder code2171301286 -
-
Slide bearing set FQG66
-
Miscellaneous
Drawing numberOrder code5271301296 -
-
Ball locking bolt FQG66, VA
-
Housing/housing accessories
Drawing numberOrder code5371341171 -
-
Sight glass on Shutter, with seal
-
Miscellaneous
Drawing numberOrder code2471301299 -
-
Padlock FQG6x
-
Housing/housing accessories
Drawing numberOrder code2271301302 -
-
Ventilation screw FQG66, VA, 1piece
-
Filter
Drawing numberOrder code2371301303 -
-
Proximity switch FQG61/FQG62/FQG66
-
Electro mechanic
Drawing numberOrder code3371099277 -
-
Terminal box FQG66
-
Electro mechanic
Drawing numberOrder code3171301298 -
-
Label "caution radiation" _SS
Order code916497-0000
