CYP02E enables you to check the correct functioning of measuring systems in a quick and easy way.

Digital service tool
Memocheck CYP02E

Measured value simulator for Memosens measuring points

CYP02E
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

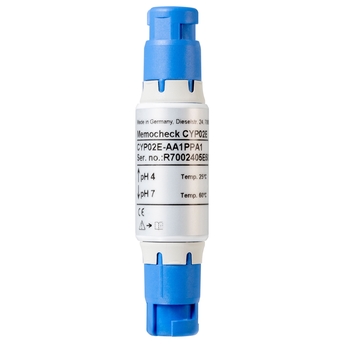

Digital service tool for non-hazardous areas ©Endress+Hauser

Memocheck CYP02E is available for non-hazardous...

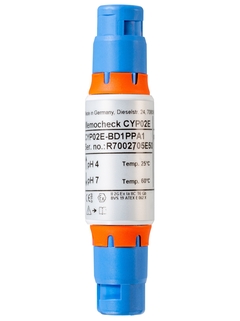

Digital service tool for hazardous areas ©Endress+Hauser

... and hazardous applications.

Memocheck CYP02E is available for non-hazardous...

Field of application

Memocheck CYP02E is a service tool for fast and easy on-site checks of your measuring systems. The double plug-in head simulates two pre-defined sensor statuses. Memocheck is connected instead of the sensor and checks the complete measuring chain from cable coupling to the process control system. You can be sure that the measured values are transmitted error free.

Memocheck simulates measured values for pH and a second parameter such as pH, ORP, dissolved oxygen, conductivity or chlorine. It allows easy and reliable checks of Memosens measuring systems during:

  • Installation

  • Commissioning

  • Troubleshooting

Memocheck is suitable for all industries.

Benefits

  • Fast and easy on-site checks: Twin plug-in head simulates two different sensor statuses to verify correct installation or commissioning of the measuring point.

  • Safety for your measuring chain: Checks signal transmission from cable coupling to the process control system.

  • Manipulation-proof: Simulated data cannot be overwritten.

  • Approved for hazardous area use.

Videos

  • Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.
