Ceraphant PTP33B - Absolute and gauge pressure

Absolute and
gauge pressure

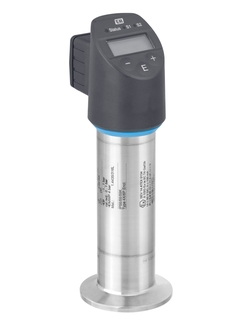

Ceraphant PTP33B

Cost-effective pressure switch with fully welded metal sensor for use in hygienic applications

PTP33B
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Ceraphant PTP33B - Absolute and gauge pressure
  • F
  • L
  • E
  • X
©Endress+Hauser

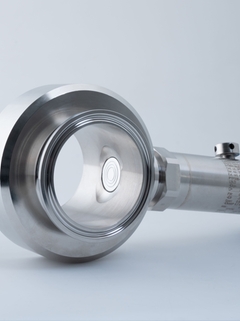

Ceraphant PTP33B with real flush mounted pipe assembly
  • F
  • L
  • E
  • X
©Endress+Hauser

Ceraphant PTP33B with real flush mounted pipe assembly

IO-Link digital communication technology

Specs at a glance

  • Measuring cell

    +400 mbar....+40 bar
    (+6 psi....+600 psi)

Field of application

The Ceraphant PTP33B is a price-attractive pressure switch with metal diaphragm for safe measurement and monitoring of absolute and gauge pressure. The pressure switch with compact design is extremely stable and overload resistant. PTP33B with stainless steal housing is 3-A and EHEDG approved. The IO-Link capability allows easy integration and parametrization of the device.

Pressure switch for monitoring absolute and gauge pressures in gases, vapors, liquids and dusts.

  • Process connections: Hygienic connections, threads

  • Process temperature: -10 to +100°C (+14 to +212°F); +135°C (275°F) for max. 1h

  • Process pressure: 400mbar to +40bar (6 to +600psi)

  • Accuracy: up to ±0.3%

Benefits

  • Integrated switching electronics for decentral and economic process monitoring and control

  • Function check and information on site thanks to LEDs and digital display

  • Compact pressure transducer for hygienic applications

  • Suitable for CIP/SIP cleaning

  • Small flush mounted hygienic process connections with 3-A and EHEDG certification

  • IO-Link reduces costs and complexity due to easy configuration and flexible integration in all fieldbus systems.
