RNB22 compact, high-efficiency primary switch mode power supply for DIN rail interface systems

RNB22 system power supply unit

System power supply unit for parallel operation with 100 to 250 V AC input and 24 V DC 2.5 A output as well as static/dynamic boost

RNB22
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

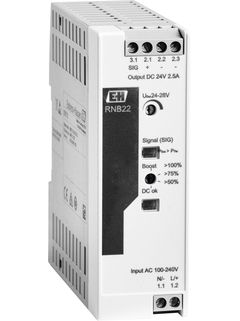

RNB22 system power supply unit for 24 VDC / 2.5 A output
  • F
  • L
  • E
  • X
©Endress+Hauser

RNB22 system power supply for DIN rails for one 4 wire sensor or transmitter

The RN Series interface devices
  • F
  • L
  • E
  • X
©Endress+Hauser

RN Series interface devices

RN Series interface devices installed in a control cabinet
  • F
  • L
  • E
  • X
©Endress+Hauser

RN Series compact interface devices being commissioned in a control cabinet

RNB22 system power supply for DIN rails for one 4 wire sensor or transmitter

Specs at a glance

  • Output

    24...28 V DC

  • Power Supply

    100…240 V AC/DC

Field of application

The RNB22 is a compact, high-efficiency primary switch mode power supply for DIN rail interface systems. It delivers a reliable, single-phase, 24 VDC / 2.5 A output and runs on a wide-range input from 100 to 240 VAC / 110 to 250 VDC, with a dynamic and static boost of 5 A and 3.125 A respectively.
When run in parallel with the RNF22 error message module, the RNB22 provides redundancy, increased capacity, as well as function monitoring to report critical operating states before errors occur.

  • High-efficiency 24 VDC / 2.5 A power supply with low power dissipation

  • Parallel mode with RNF22 for redundancy

  • Suited for decentralized applications or remote cabinets

  • Compact housing efficient use of space in control cabinets

  • Low heat dissipation, no lateral clearance required

  • Ambient temperature range: –25 to 70 °C (–13 to 158 °F)

Benefits

  • Safe and reliable, single-phase output in the power range up to 100 W

  • Smart system function monitoring for fault prevention for high system availability

  • Powerful reserve capacity for lower power ranges

  • Transient surge protection, short-circuit proof, no-load proof

  • Tool-free installation, suited for vertical or horizontal mounting
