Specs at a glance
-
Process temperature
Any
-
Process pressure / max. overpressure limit
Any
-
Max. measurement distance
Unlimited measuring range,
Cascade -
Accuracy
+/-1%
-
Main wetted parts
Non-contact
Field of application

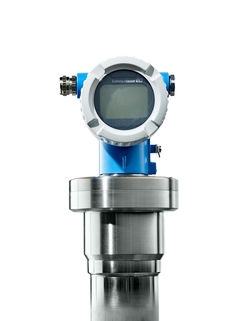

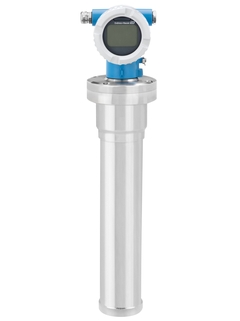

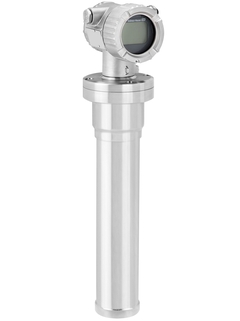

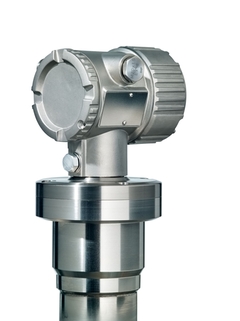

The Gammapilot FMG50 compact transmitter is designed for non-contact point level detection, continuous level, interface and density measurement in liquids, solids, suspensions or sludges. As the first true 2-wire loop powered compact transmitter it minimizes engineering and installation efforts.
For all kinds of process vessels, like reactors, autoclaves, separators, acid tanks, cyclones
For liquids, solids, suspensions or sludges etc.
Extreme measuring conditions, for example corrosion, abrasion, viscosity, toxicity
Process temperature: No limitation (non-invasive)
Process pressure: No limitation (non-invasive)
Housing material: 316L, aluminum
International explosion protection certificates, SIL, overfill prevention WHG
Benefits
First real 2-wire loop-powered compact transmitter minimizes engineering and installation efforts
Reduced installation and engineering costs thanks to the first 2-wire loop powered compact transmitter
Increased plant safety, efficiency and availability even under extreme process and ambient conditions
Designed according to IEC 61508 with SIL2/3 approval for all measuring tasks
Reduced verification effort and minimized plant shut-downs due to state-of-art Heartbeat Technology
-
Usage in up to +80°C (+176°F) ambient temperature without additional cooling thanks to innovative sensor technology
Bluetooth® wireless technology for remote operation out of the radiation beam
Videos
Xpert selection
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Loading alternative products
Predecessor
Success stories
Most downloaded
-
-
Technical Information (TI)
TI Gammapilot FMG50
English version - 06/2024
Radiometric measuring technology
EN 03/06/202417/02/202230/03/202016/08/2019Language:
English
Version:
03/06/2024
File size:
1.9 MB
File name:
TI01462FEN_0424-00.pdf
-
-
-
Device Parameter (GP)
Gammapilot FMG50
English version - 08/2019
Radiometric measurement
EN 22/08/2019Language:
English
Version:
22/08/2019
File size:
362.1 KB
File name:
GP01141FEN_0119.pdf
-
143 documents
-
-
Technical Information (TI)
TI Gammapilot FMG50
Radiometric measuring technology
EN 03/06/202417/02/202230/03/202016/08/2019Language:
English
Version:
03/06/2024
File size:
1.9 MB
File name:
TI01462FEN_0424-00.pdf
-
-
-
Operating Instruction (BA)
BA Gammapilot FMG50
Radiometric measuring technology
EN 03/06/202430/08/202208/03/202216/08/202116/08/2019Language:
English
Version:
03/06/2024
File size:
4.8 MB
File name:
BA01966FEN_0624-00.pdf
-
-
-
Device Parameter (GP)
Gammapilot FMG50
Radiometric measurement
EN 22/08/2019Language:
English
Version:
22/08/2019
File size:
362.1 KB
File name:
GP01141FEN_0119.pdf
-
-
-
Short Instruction (KA)
KA Gammapilot FMG50 HART
Radiometric measuring technology
EN 03/06/202410/07/202301/12/202016/08/2019Language:
English
Version:
03/06/2024
File size:
1.1 MB
File name:
KA01427FEN_0424-00.pdf
-
-
-
Installation Instructions (EA)
Housing
Gammapilot
Cerabar, DeltabarEN 10/03/202311/09/2020Language:
English
Version:
10/03/2023
File size:
1.3 MB
File name:
EA01330FEN_0222-00.pdf
-
-
-
Installation Instructions (EA)
Ground terminal
Gammapilot, Micropilot, Liquiphant
Cerabar, DeltabarEN 20/02/202325/05/2020Language:
English
Version:
20/02/2023
File size:
465.7 KB
File name:
EA01306FEN_0223-00.pdf
-
-
-
Installation Instructions (EA)
EA Cable gland M20x1.5
Gammapilot, Liquiphant, Micropilot
Cerabar, DeltabarEN 11/09/202327/01/202225/05/202006/02/202009/08/2019Language:
English
Version:
11/09/2023
File size:
1.2 MB
File name:
EA01262FEN_0623-00.pdf
-
-
-
Installation Instructions (EA)
EA HAN7D plug, 90 deg, housing side HAN7D socket, cable side
Gammapilot, Micropilot
Cerabar, DeltabarEN 30/11/202327/05/202009/08/2019Language:
English
Version:
30/11/2023
File size:
495.6 KB
File name:
EA01268FEN_0323-00.pdf
-
-
-
Installation Instructions (EA)
EA HistoROM
Gammapilot, Liquiphant, Micropilot, Prothermo
Cerabar, DeltabarEN 15/05/202313/01/202227/02/202131/07/2020Language:
English
Version:
15/05/2023
File size:
1.1 MB
File name:
EA01314FEN_0423-00.pdf
-
-
-
Installation Instructions (EA)
NaI scintillator
Gammapilot FMG50
EN 11/09/202016/08/2019Language:
English
Version:
11/09/2020
File size:
268.1 KB
File name:
EA01274FEN_0220.pdf
-
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Blind plug, M20, 316L, o-ring EPDM
-
further parts
Drawing numberOrder code1471487198 -
-
Blind plug, M20, Alu, o-ring EPDM
-
further parts
Drawing numberOrder code1471487199 -
-
Blind plug, NPT1/2, Alu
-
further parts
Drawing numberOrder code1471487201 -
-
Blind plug, NPT1/2, 316L
-
further parts
Drawing numberOrder code1471487203 -
-
Cable gland M20, plastic
-
further parts
Drawing numberOrder code1571435135 -
-
Cable gland M20, brass nickel plated
-
further parts
Drawing numberOrder code1571435136 -
-
Cable gland M20, 316L
-
further parts
Drawing numberOrder code1571435137 -
-
M12 plug,CuZn-nickel plated,housing side
-
further parts
Drawing numberOrder code1571435138 -
-
Adapter set M20x1.5-G1/2, Alu
-
further parts
Drawing numberOrder code1571440660 -
-
Adapter set M20x1.5-G1/2, 316L
-
further parts
Drawing numberOrder code1571440667 -
-
HAN7D plug, 90deg, housing side
-
further parts
Drawing numberOrder code1571439098 -
-
HAN7D socket, cable side
-
further parts
Drawing numberOrder code1571474958 -
-
Ground terminal Housing L+P
-
further parts
Drawing numberOrder code1871474251 -
-
Cover Alu, closed
-
further parts
Drawing numberOrder code2071435116 -
-
Cover Alu, closed, Ex d
-
further parts
Drawing numberOrder code2071435118 -
-
Cover 316L, closed, Ex d
-
further parts
Drawing numberOrder code2071435122 -
-
Cover red Alu, closed, Ex d
-
further parts
Drawing numberOrder code2071439086 -
-
Cover 316L, sight glass, Ex d
-
further parts
Drawing numberOrder code2071435123 -
-
Cover Alu, sight glass
-
further parts
Drawing numberOrder code2071439089 -
-
Cover Alu, sight window, Ex d
-
further parts
Drawing numberOrder code2071439090 -
-
Cover red Alu, sight glass, Ex d
-
further parts
Drawing numberOrder code2071439088 -
-
Cover Alu, connection compartment, Ex d
-
further parts
Drawing numberOrder code2571435121 -
-
Cover 316L, connect. compartment, Ex d
-
further parts
Drawing numberOrder code2571435128 -
-
Cover Alu, connection compartment
-
further parts
Drawing numberOrder code2571439085 -
-
Cover red Alu, connect. compartment,Ex d
-
further parts
Drawing numberOrder code2571439087 -
-
Cover sealing HNBR, -40oC, 5 pieces
-
further parts
Drawing numberOrder code2171435132 -
-
Electronics, HART, FMG50
-
further parts
Drawing numberOrder code3071438555 -
-
Terminal unit TU100B, 4-20mA
-
further parts
Drawing numberOrder code3571435766 -
-
Terminal unit TU101B, 4-20mA, OVP
-
further parts
Drawing numberOrder code3571435767 -
-
Segment display VU100
-
further parts
Drawing numberOrder code4071435772 -
-
Segment display + Bluetooth VU101
-
further parts
Drawing numberOrder code4071435779 -
-
Mounting clamp d=80mm, FMG50
-
further parts
Order code71444532 -
-
Mounting clamp d=95mm, FMG50
-
further parts
Order code71444539 -
-
Collimator sensor side FMG50
Order code71526867 -
Thermal shielding, NaI 2"
Order code71460674 -
Thermal shielding,NaI 4",200mm/400mm PVT
Order code71460679 -
Thermal shielding, 800mm PVT
Order code71460682 -
Thermal shielding, 1200mm/1600mm PVT
Order code71460684 -
Thermal shielding, 2000/2400/3000mm PVT
Order code71464825 -
Retaining bracket, FMG50
Order code71465085 -
M12-female plug connector, cable side
Order code52006263 -
M12-female plug connec.,90deg,cable side
Order code71114212 -
Mounting clamp 1x d=80mm, 1x d=95mm
Order code71437519 -
Mounting clamp 2x d=80mm, 1x d=95mm
Order code71437523 -
Mounting clamp 3x d=80mm, 1x d=95mm
Order code71437525 -
Weather protection cover, 316L, XW112
Order code71438303
